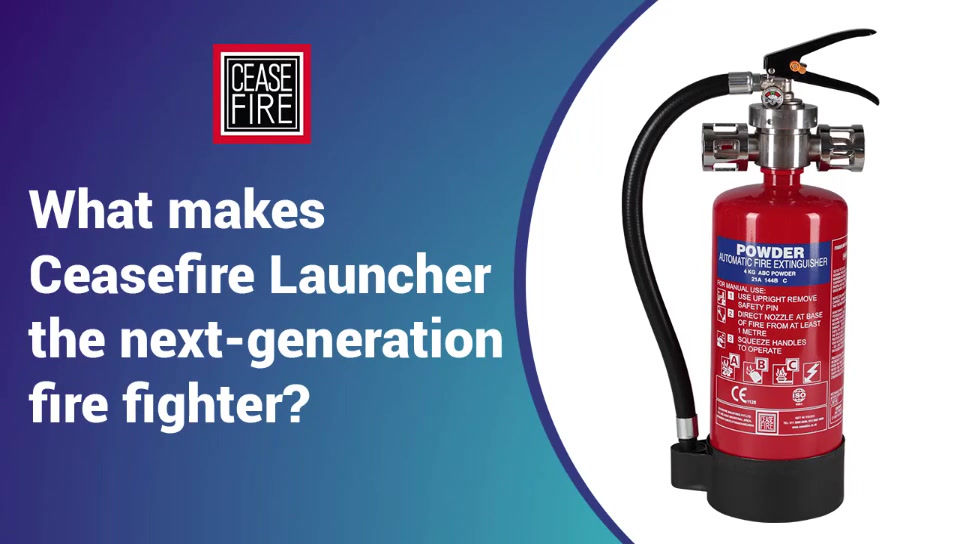

Launcher (Extinguisher + Modular Suppression System)
Ceasefire Launcher - This highly featureful and automatic fire extinguisher is truly a multi tasker. One, it works as an extinguisher; two, takes over firefighting when the fire becomes too big to handle; and three, turns into a suppression system when no one is around.
A futuristic product powered by MAP 90 it takes firefighting to a level the world has yet to experience. In the event of a large fire, it allows the firefighter to launch the fire extinguisher in the direction of the flames and rush to safety, while the extinguisher automatically activates and extinguishes the flames.
When no one is around to detect the fire, this one-of-a-kind extinguisher launches into a standalone, modular suppression system when it senses a rise in temperature approx 68°C / 155°F.Ensuring that no fire ever goes undetected and unaddressed, the biggest pro of this revolutionary extinguisher is that it eliminates the need for the firefighter to go near the fire.
Ceasefire Launcher range comes in 4Kg, 6Kg and 9Kg size variants in Mild Steel container bodies.
FIRE RATINGS & COVERAGE AREA:
Size Ratings Coverage Area 4 Kg 21A, 144B 3.30m2 6 Kg 27A, 183B 5.88m2 9 Kg 43A, 233B 9.29m2 -
Classification: In a fire situation, there is no time to think about which extinguisher to use on which kind of fire. The Launcher can be used on any kind of fire, making it a truly versatile firefighter.
-
Deep-Drawn Body: The shell of the Launcher is made using deep-drawn process. The decrease in welding seam makes it leakproof and allows it to attain high burst capacity.
-
Convenient handle: The handle allows the firefighter to use the extinguisher with ease. It also helps at the time of the extinguisher being launched at the fire.
-
Unique Discharge Mechanism: Fitted with a thermal activation device, it ensures a 360 degree discharge for optimum suppression effect.
-
Self-Actuation: Since the Launcher can be self-actuated, it enables safe evacuation, eliminates the fire and stands guard at high fire risk areas.
-
Two Heat Sensors: Armed with two heat sensors, that pick up temperature at approx 68°C / 155°F, activating the system automatically as a suppression system.
-
Pressure Gauge: Easy-to-read pressure gauge for ease of monitoring.
-
Hydrostatic Pressure Testing and Helium Leak Detection Test: This ensures that your Launcher performs perfectly. Because when it comes to a fire, there are no second chances.
-
EPDM Rubber Hosepipe: This durable, long-lasting pipe doesn’t develop any cracks due to wear and tear.
-
Special Safety Valves: Equipped with Schraeder Valve and Pressure Relief Valve.
-
Certification: BSI tested and CE certified.
-
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER AUTOMATIC FIRE EXT LAUNCHER MAP90 4KG MS SP AUTOMATIC FIRE EXT LAUNCHER MAP90 6KG MS SP AUTOMATIC FIRE EXT LAUNCHER MAP90 9KG MS SP PRODUCT CODE CF-000727 CF-000728 CF-000729 AGENT ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT, BSI EUROCERT, BSI EUROCERT, BSI CERTIFICATION TYPE PED, BSI TESTED PED, BSI TESTED PED, BSI TESTED CE MARKING YES YES YES THROW 4 METERS 6 METERS 7 METERS GROSS WEIGHT (APPROX) APPROX. 8.70 KG APPROX. 11.50 KG APPROX. 16.80 KG NET MASS (APPROX) 3.92 TO 4.08 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG DISCHARGE MECHANISM SQUEEZE GRIP/
AUTOMATICSQUEEZE GRIP/
AUTOMATICSQUEEZE GRIP/
AUTOMATICAPPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE FIRE RATINGS 21A 27A 43A 144B 183B 233B CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES WARRANTY IN YEARS 1 1 1 G.A. DRAWING NUMBER CF/SP-4L/GA/02 CF/SP-6L/GA/02 CF/SP-9L/GA/02 WORKING PRESSURE 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR DIA. OF SHELL (OD) 140 MM 160 MM 175 MM HEIGHT OF FIRE EXT. (APPROX) 505 MM 545 MM 675 MM BODY THICKNESS (APPROX) 1.6 MM 1.6 MM 2.0 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC SCHRAEDER VALVE YES YES YES PRESSURE RELIEF VALVE YES YES YES *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
