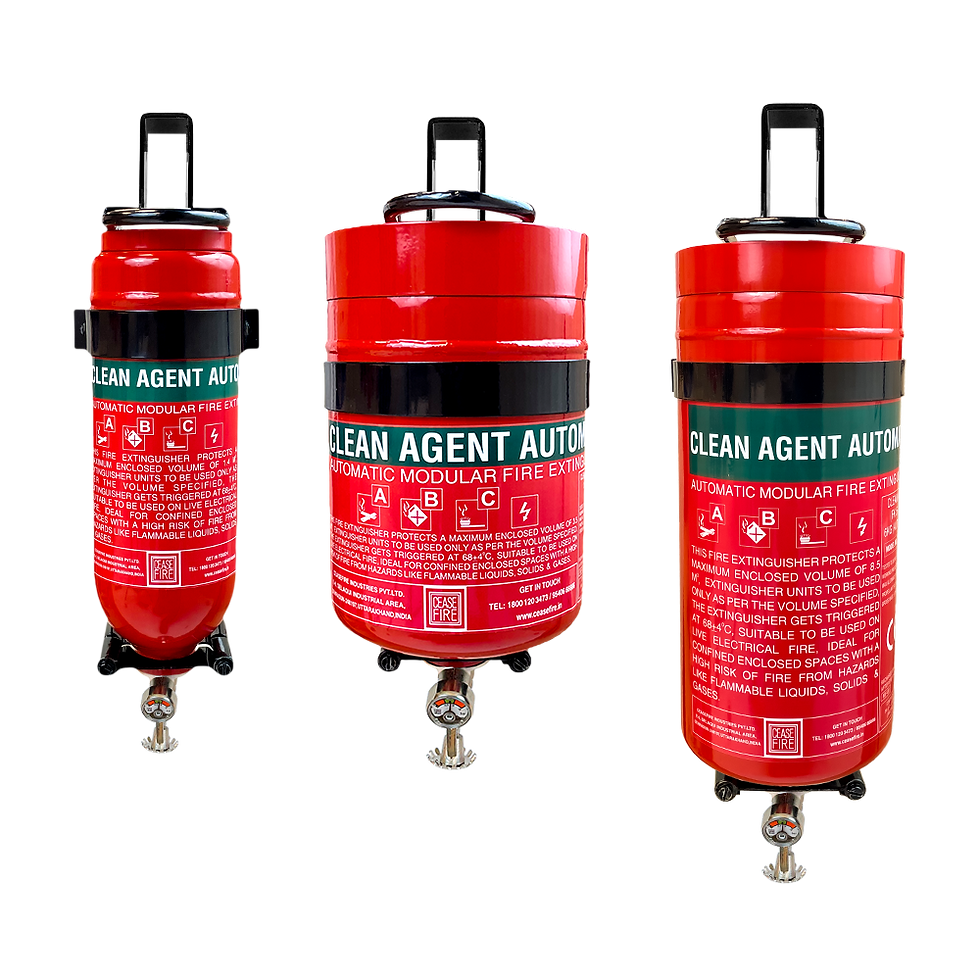

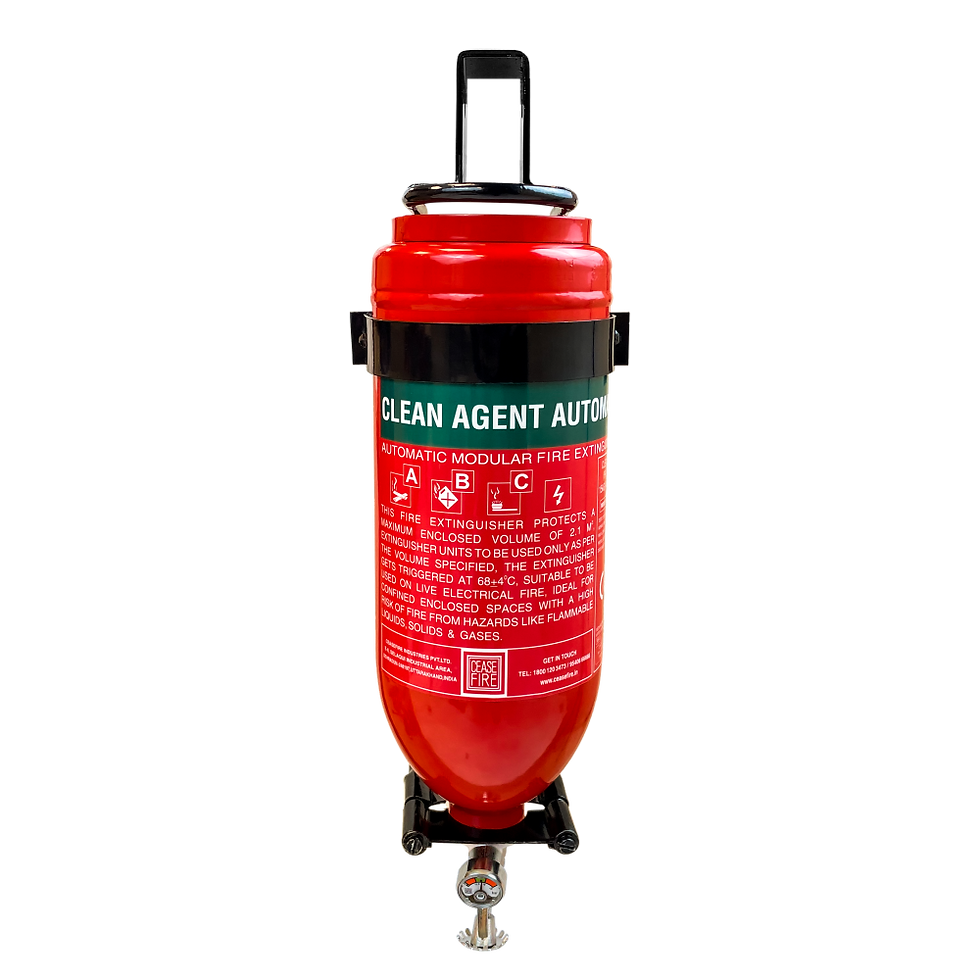

Automatic Fire Extinguishers (Wall Mounted)
Ceasefire’s Inverted Automatic Fire Extinguisher addresses two simple problems; first of fire safety and second of space crunch. Being an automatic extinguisher it is ideal for spaces like boats and engine compartments that are not just prone to fire but also have limited space, where installing an extinguisher can be a challenge.
Ceasefire Automatic Fire Extinguishers come equipped with wall mounting brackets that make it extremely easy to install the extinguisher on the wall.
The Automatic Fire Extinguisher is available in two-agent options namely: Clean Fluoroketone (FK) Gas and ABC Powder. Availability of the extinguisher in these two agent options makes it ideal for a wide range of applications.
What makes the extinguisher even more versatile is the optional telescopic mounting mechanism that can make the extinguisher reach closest to the area of threat. This makes it capable of protecting specific spots or assets that are at high fire risk.
Ceasefire Automatic Fire Extinguisher is a one of-a-kind extinguisher that works as a standalone, modular suppression system. Ensuring that no fire goes undetected and unaddressed. The biggest pro of this advanced extinguisher is that it eliminates the need to manually address the fire.
The thermal actuator detects the rising temperature of the area and activates automatically, even when no one is around, ensuring that the fire is brought under control early and efficiently.
The optional telescopic arms of the Automatic Fire Extinguisher bring the extinguishers closer to the threat and guard the targeted areas that are at high fire risk. Ultimately, improving the chance of early fire detection and effective fire fighting.
- Comes in option of Fluoroketone and Powder.
- Clean agent Fluoroketone based extinguishers do not fall under the ambit of F-gas regulations.
- Works on all classes of fire.
- Automatic detection and suppression.
- Comes with a secure mounting bracket for direct installation on the wall.
- Optional flexible mounting bracket that enables optimal positioning of the extinguisher in the risk zone.
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER INVERTED AUTOMATIC FIRE EXT MAP50 1KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP50 2KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP50 4KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP50 6KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP50 9KG MS SP RED PRODUCT CODE CF-001401 CF-001402 CF-001403 CF-001404 CF-001405 AGENT ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT EUROCERT EUROCERT EUROCERT EUROCERT CERTIFICATION TYPE PED PED PED PED PED CE MARKING YES YES YES YES YES COVERAGE AREA 1.6 M2 2.3 M2 6.3 M2 9.8 M2 19.2 M2 GROSS WEIGHT (APPROX) 1.8 KG 3.3 KG 6 KG 8.7 KG 12.9KG NET MASS (APPROX) 0.8KG 1.3KG 1.9KG 2.6KG 3.8KG DISCHARGE MECHANISM AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES YES WARRANTY IN YEARS 1 1 1 1 1 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 30 BAR 30 BAR 30 BAR 30 BAR 30 BAR DIA. OF SHELL (OD) 86.5 MM 108 MM 140 MM 160 MM 175 MM BODY THICKNESS (APPROX) 1.6 MM 1.6 MM 1.6 MM 1.6 MM 2.0 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER INVERTED AUTOMATIC FIRE EXT MAP90 1KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP90 2KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP90 4KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP90 6KG MS SP RED INVERTED AUTOMATIC FIRE EXT MAP90 9KG MS SP RED PRODUCT CODE CF-001406 CF-001407 CF-001408 CF-001409 CF-001410 AGENT CATEGORY ABC POWDER ABC POWDER ABC POWDER ABC POWDER ABC POWDER AGENT ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT EUROCERT EUROCERT EUROCERT EUROCERT CERTIFICATION TYPE PED PED PED PED PED CE MARKING YES YES YES YES YES COVERAGE AREA 1.6 M2 2.3 M2 6.3 M2 9.8 M2 19.2 M2 GROSS WEIGHT (APPROX) 1.8 KG 3.3 KG 6 KG 8.7 KG 12.9KG NET MASS (APPROX) 0.8KG 1.3KG 1.9KG 2.6KG 3.8KG DISCHARGE MECHANISM AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES YES WARRANTY IN YEARS 1 1 1 1 1 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 30 BAR 30 BAR 30 BAR 30 BAR 30 BAR DIA. OF SHELL (OD) 86.5 MM 108 MM 140 MM 160 MM 175 MM APPROX. HEIGHT OF FIRE EXT. 330 MM 350 MM 396 MM 446 MM 577 MM BODY THICKNESS (APPROX) 1.6 MM 1.6 MM 1.6 MM 1.6 MM 2.0 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 1.5KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 1KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 2.5KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 2KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 4KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 6KG MS SP RED INVERTED AUTOMATIC FIRE EXT (FK-5-1-12) 9KG MS SP RED PRODUCT CODE CF-001412 CF-001411 CF-001414 CF-001413 CF-001415 CF-001416 CF-001417 AGENT FK-5-1-12 FK-5-1-12 FK-5-1-12 FK-5-1-12 FK-5-1-12 FK-5-1-12 FK-5-1-12 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT EUROCERT EUROCERT EUROCERT EUROCERT EUROCERT EUROCERT CERTIFICATION TYPE PED PED PED PED PED PED PED CE MARKING YES YES YES YES YES YES YES COVERAGE VOLUME 2.1 M3 1.4 M3 3.5 M3 2.8 M3 5.7 M3 8.5 M3 12.8 M3 GROSS WEIGHT (APPROX) 2.8 KG 1.8 KG 4.1 KG 3.3 KG 6 KG 8.7 KG 12.9KG NET MASS 1.3KG 0.8KG 1.6KG 1.3KG 1.9KG 2.6KG 3.8KG DISCHARGE MECHANISM AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC AUTOMATIC APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER WARRANTY IN YEARS 1 1 1 1 1 1 1 WORKING PRESSURE 10 BAR 10 BAR 10 BAR 10 BAR 10 BAR 10 BAR 10 BAR HYDROSTATIC TEST PRESSURE 30 BAR 30 BAR 30 BAR 30 BAR 30 BAR 30 BAR 30 BAR DIA. OF SHELL (OD) 108 MM 86.5 MM 140 MM 108 MM 140 MM 160 MM 175 MM BODY THICKNESS (APPROX) 1.6 MM 1.6 MM 1.6 MM 1.6 MM 1.6 MM 1.6 MM 2.0 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C 68 + 4 / 79 C *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
