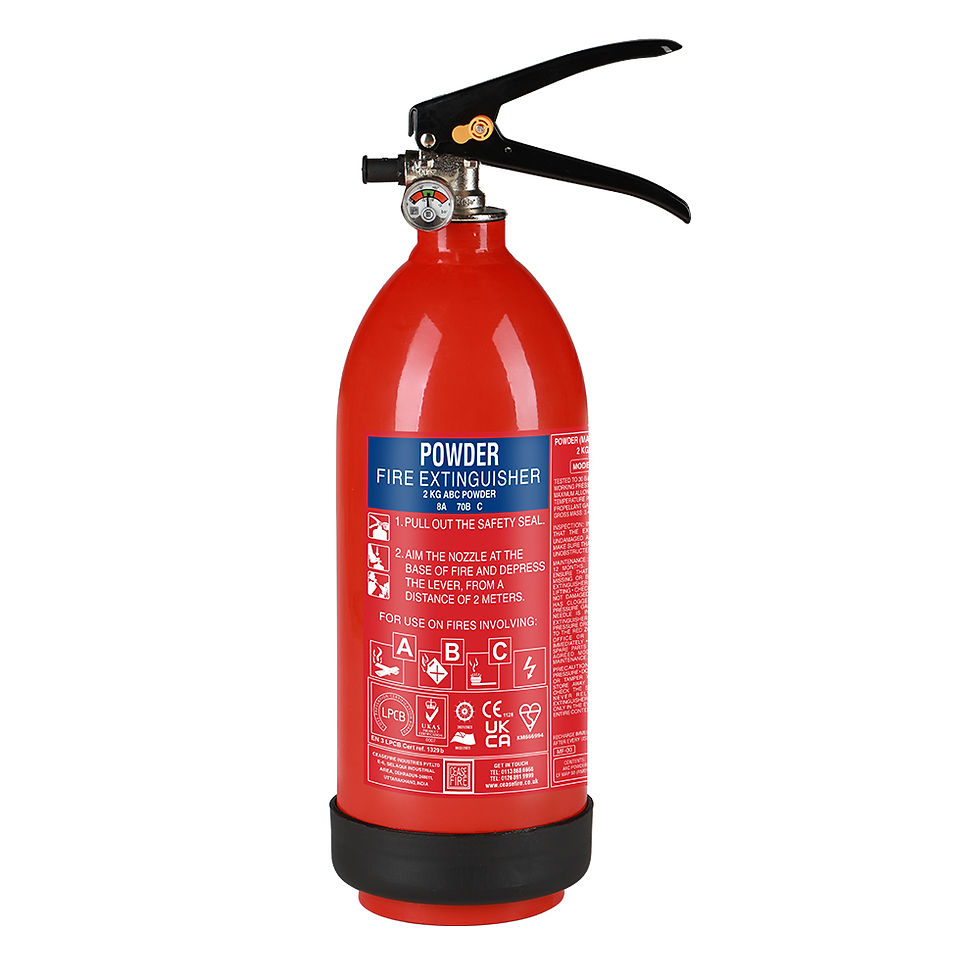

ABC Powder Based Extinguishers (Portable)
In environments such as schools, offices, hospitals & factories, the Ceasefire ABC Powder extinguisher is your safest bet. Mono Ammonium Phosphate paired with a simple, controllable discharge mechanism and stored pressure technology maximises the firefighting power and puts out the fire within seconds.
Ceasefire’s ABC extinguishers are effective against Class A, B and C fires as well as Electrical fires. They take the guesswork and confusion out of choosing an extinguisher and save valuable time in the face of the fatally dangerous enemy called fire.

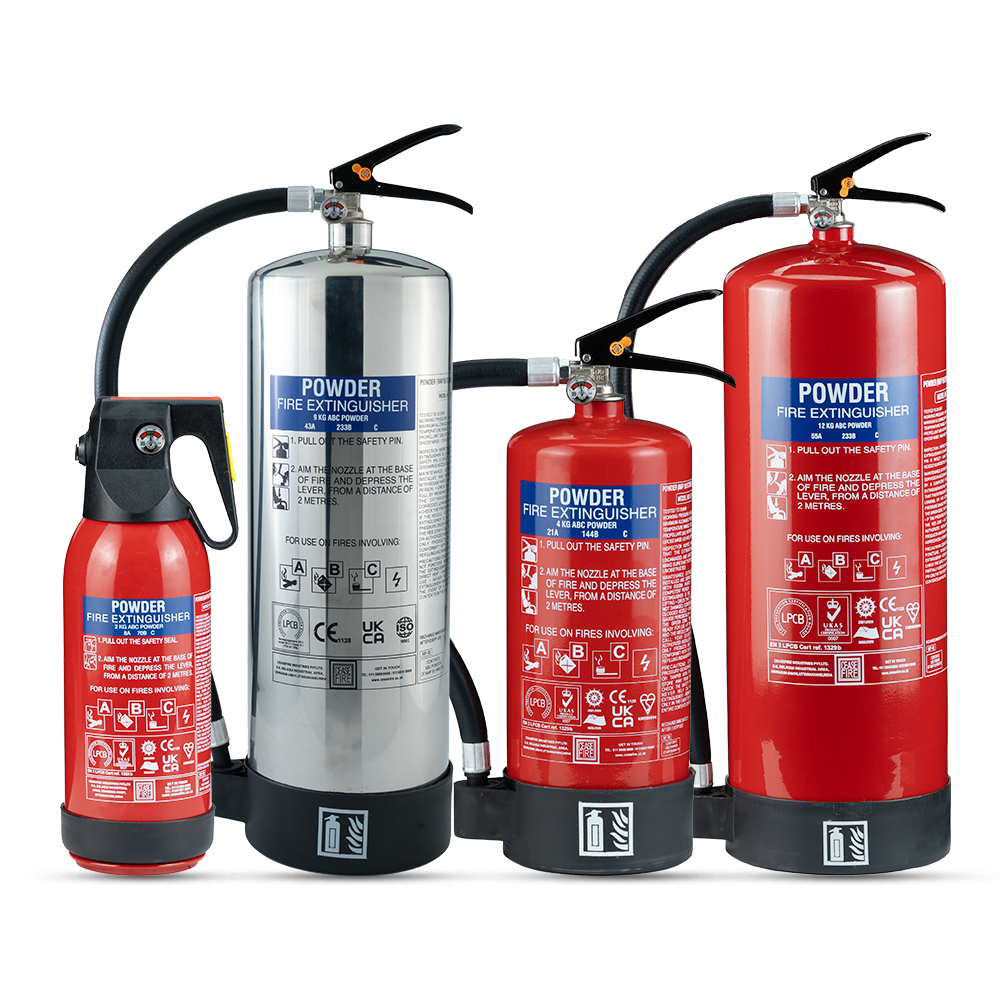

Ceasefire’s ABC extinguishers are built for speed, power and reliability. A simple two-step activation mechanism allows you to fight the fire within seconds. MAP50 and MAP90 concentrations of Mono Ammonium Phosphate maximizes the fire fighting power available to you. And stringent quality control and multiple point testing systems ensure that when you are faced with a fire, these extinguishers will deliver.Ceasefire’s ABC Powder portable range of extinguishers come in 2Kg, 4Kg, 6Kg, 9kg and 12Kg size variants and are Stored-pressure type extinguishers, in Mild steel container bodies.
FIRE RATINGS:
Size 2 Kg 4 Kg 6 Kg 9 Kg 12 Kg MAP-50 8A, 70B 21A, 144B 27A, 183B 43A, 233B 55A, 233B MAP-90 13A, 55B 21A, 144B 27A, 183B 43A, 233B 55A, 233B -
Classification: Fights Class A, B, C and Electrically started fires.
-
Agent Potency: Packed with 50% and 90% MAP concentration.
-
Pressure gauge: Easy-to-read pressure gauge for ease of monitoring
-
Special safety valves: Equipped with Schraeder Valve and Pressure Relief Valve (available only in portable range).
-
1-year Warranty: 1-year Warranty means Ceasefire is looking out for the health of your fire safety products.
-
Certification: LPCB, BSI Kitemark, PED, MED, and UKCA-MED certified.
-
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER MAP50 2KG MS SP
(SQUEEZE GRIP)MAP50 2KG MS SP
(GUN HOUSING)MAP50 4KG MS SP MAP50 6KG MS SP MAP50 9KG MS SP MAP50 12KG MS SP MAP50 6KG SS SP CHROME MAP50 9KG SS SP CHROME PRODUCT CODE CF-000804 CF-000731 CF-000732 CF-000733 CF-000734 CF-000735 CF-000990 CF-000991 AGENT ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 ABC POWDER MAP 50 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BRE GLOBAL EUROCERT EUROCERT CERTIFICATION TYPE PED,EN3 PED,EN3 PED,EN3 PED,EN3 PED,EN3 PED,EN3,MED PED PED LPCB MARKING YES YES YES YES YES YES YES WITH T&C (16.5) YES WITH T&C (16.5) KITEMARK MARKING YES YES YES YES YES NA NA NA CE MARKING YES YES YES YES YES YES YES YES WHEEL / MED MARKING YES YES YES YES YES YES NA NA THROW 3.5 METERS 3.5 METERS 4 METERS 6 METERS 7 METERS 7 METERS 6 METERS 7 METERS GROSS WEIGHT (APPROX) 3.40KG APPROX. 3.40 KG (APPROX) 6.50 KG (APPROX) 9.30 KG (APPROX) 13.40 KG (APPROX) 17.70KG APPROX. 9.5 KG (APPROX.) 13.30 KG (APPROX.) NET MASS (APPROX) 1.94 TO 2.06 KG 1.94 TO 2.06 KG 3.92 TO 4.08 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG 11.76 TO 12.24 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG DISCHARGE MECHANISM SQUEEZE GRIP THUMB TRIGGERED SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C & ELECTRICAL STARTED FIRE. A, B, C & ELECTRICAL STARTED FIRE. FIRE RATINGS 8A 8A 21A 27A 43A 55A 27A 43A 70B 70B 144B 183B 233B 233B 183B 233B CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DRAWN ROLLED & MIG WELDED DRAWN ROLLED & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER CHROME FINISH CHROME FINISH HELIUM LEAK DETECTION TESTING YES YES YES YES YES YES YES YES WARRANTY IN YEARS 1 1 1 1 1 1 1 1 G.A. DRAWING NUMBER CF/SP-2LB-EXP50/GA/02 CF/SP-2LB-50/GA/03 CF/SP-4LB-50/GA/03 CF/SP-6LB-50/GA/03 CF/SP-9LB-50/GA/03 CF/SP-12-90/GA/03 0 0 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR DIA. OF SHELL (OD) 108 MM 108 MM 140 MM 160 MM 175 MM 204 MM 160 MM 175 MM APPROX. HEIGHT OF FIRE EXT. 370 MM 345 MM 440 MM 485 MM 615 MM 665 MM 485 MM 615 MM BODY THICKNESS (APPROX) 1.4 MM 1.4 MM 1.2 MM 1.4 MM 1.4 MM 1.6 MM 1.5 MM 1.5 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) SS 304 (1.4301) SS 304 (1.4301) OPERATING TEMPERATURE -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC SCHRAEDER VALVE YES NA YES YES YES YES YES YES PRESSURE RELIEF VALVE YES NA YES YES YES YES YES YES *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
NOMENCLATURE FOR PORTABLE FIRE EXTINGUISHER MAP90 2KG MS SP
(GUN HOUSING)MAP90 4KG MS SP MAP90 6KG MS SP MAP90 9KG MS SP MAP90 12KG MS SP PRODUCT CODE CF-000722 CF-000723 CF-000724 CF-000725 CF-000726 AGENT ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 ABC POWDER MAP 90 STORED PRESSURE / CARTRIDGE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE STORED PRESSURE CERTIFICATION OR VERIFING BODY EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT, LPCB,BSI EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB,BSI,BRE GLOBAL EUROCERT,LPCB CERTIFICATION TYPE PED,EN3 PED,EN3 PED,EN3 PED,EN3 PED,EN3 LPCB MARKING YES YES YES YES YES KITEMARK MARKING YES YES YES YES NA CE MARKING YES YES YES YES YES WHEEL / MED MARKING YES NA YES YES NA THROW 3.5 METERS 4 METERS 6 METERS 7 METERS 7 METERS GROSS WEIGHT (APPROX) 3.4 0KG 6.50 KG 9.30 KG 13.40 KG 17.70 KG NET MASS (APPROX) 1.94 TO 2.06 KG 3.92 TO 4.08 KG 5.88 TO 6.12 KG 8.82 TO 9.18 KG 11.76 TO 12.24 KG DISCHARGE MECHANISM THUMB TRIGGERED SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP SQUEEZE GRIP APPLICABLE ON FIRES A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE A, B, C, & ELECTRICAL STARTED FIRE FIRE RATINGS 13A 21A 27A 43A 55A 55B 144B 183B 233B 233B CAN CONSTRUCTION DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED DEEP DRAWN & MIG WELDED VALVE / CAP CONSTRUCTION FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING FORGING AND MACHINING EXTERNAL COATING EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER EPOXY POLYESTER POWDER HELIUM LEAK DETECTION TESTING YES YES YES YES YES WARRANTY IN YEAR 1 1 1 1 1 G.A. DRAWING NUMBER CF/SP-2LB/GA/03 CF/SP-4LB/GA/03 CF/SP-6LB/GA/03 CF/SP-9LB/GA/03 CF/SP-12-90/GA/03 WORKING PRESSURE 15 BAR 15 BAR 15 BAR 15 BAR 15 BAR HYDROSTATIC TEST PRESSURE 35 BAR 35 BAR 35 BAR 35 BAR 35 BAR DIA. OF SHELL (OD) 108 MM 140 MM 160 MM 175 MM 204 MM HEIGHT OF FIRE EXT. (APPROX) 345 MM 440 MM 485 MM 615 MM 665 MM BODY THICKNESS (APPROX) 1.4 MM 1.2 MM 1.4 MM 1.4 MM 1.6 MM CYLINDER MATERIAL SPEC. STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) STEEL CR2(DC01) OPERATING TEMPERATURE -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC -30OC TO +60OC SCHRAEDER VALVE NA YES YES YES YES PRESSURE RELIEF VALVE NA YES YES YES YES *Technical specifications are subject to change with time due to our continuous product improvisation initiatives.
